Semi automatic ToolMaster DC420VA
A unique and innovative concept in band saw machine technology, PETRA Machines has designed a new Band saw machine model PE-TRA DC420V ToolMaster, (Capacity 420 x 420 mm) which offers flexibility to cut solids as well as Sections (I beams, Angles, Tubes/Pipes etc.) with equal ease.
PETRA Band saw machine model DC420V ToolMaster is designed to offer more flexibility to Tool makers, Steel traders or in general engineering workshops, where variety of jobs needs to cut, ranging from rounds, plates, hex to Tubes, Angles, I-beams etc.

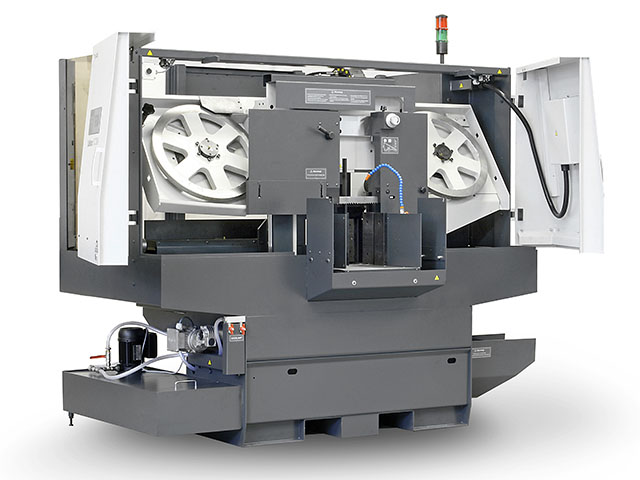

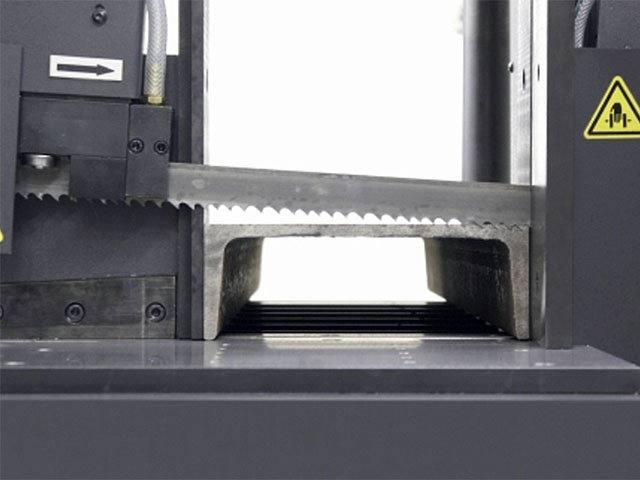

This machine model is designed with a concept of change in blade attack angle as per cutting application. Means Blade attack angle can be changed from 0 degree to 3,5 degree, if someone want to cut Angle or I-Beam or tube/Pipe. Even for solids, a blade attack angle of 0 degree or 3,5 degree can be selected based on its shape.
This machine has a capacity of 420 mm x 420 mm and is equipped with load / force mechanism on both blade guides, to negotiate cutting of wide size solid jobs and to control cutting conditions at entry and exit of hollow sections.
Machine arm movement is based on PETRA’s dual column platform, which ensures stick slip free movement and offers smooth and vibration free cutting environment. Its True Dual Column, design assures structural rigidity. The Patented solution for precise, parallel movement of the frame including Ball Rail System on both columns provide superior fine movement of the frame eliminating both the influence of the center of gravity and cutting forces on the frame.
| Cutting Capacity Round/Square | 420 / 420 x 420 mm |
| Drive and Inverter | 4 kW / 5,5 kW with inverter |
| Gear Box | Helical |
| Blade attack angle | 0 or 3,5 degree |
| Band Wheel Diameter | 500 mm |
| Infinitely variable blade speed | 18 – 120 m/min |
| System controls | Siemens S7-1200 PLC |
| Touch screen | 4″ Touch screen |
| Blade size | 4975 x 34 x 1,1 mm |
| Size L x W x H | 1350 x 2530 x 2030 mm |
| Net Weight | 1700 kg |

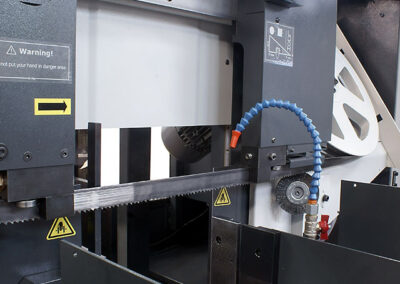

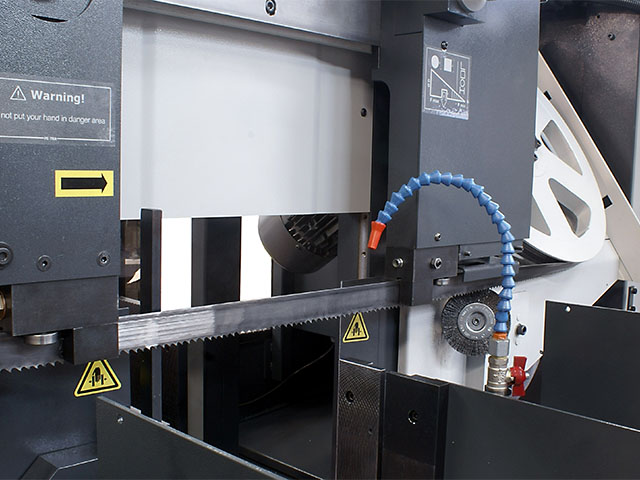

Specially designed, long life blade guides with internal coolant flow, factory adjusted

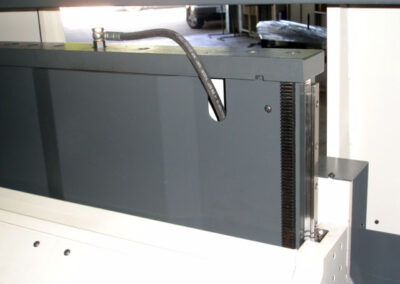

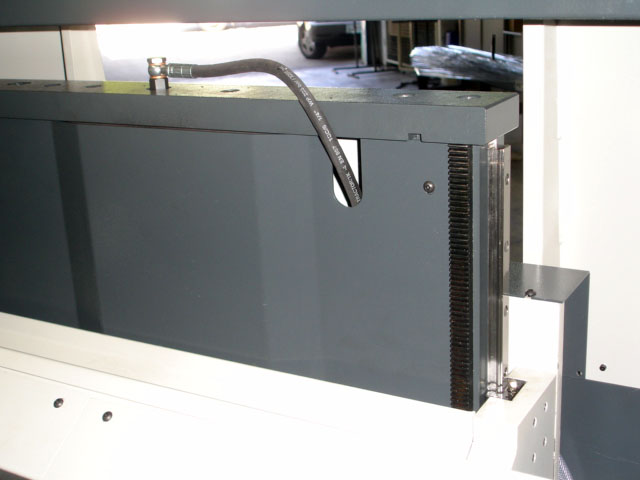

Mechanically adjustable return height sawing frame
Specially designed, long life blade guides with internal coolant flow, factory adjusted

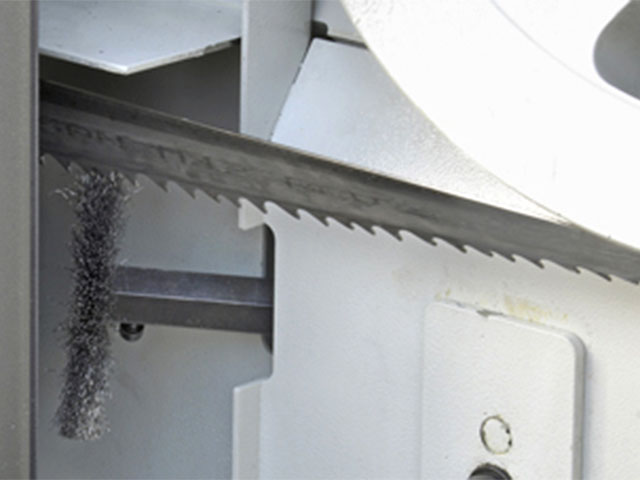

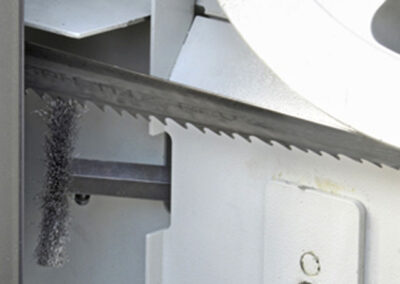

Highly efficient motorized blade cleaning wire brush, mounted at pre-designed angle

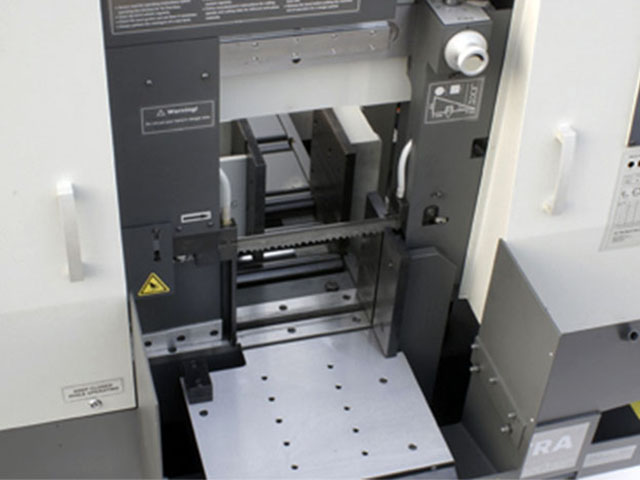

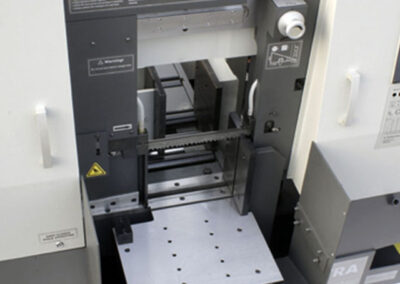

Heavy duty Hydraulic Main & shuttle vises

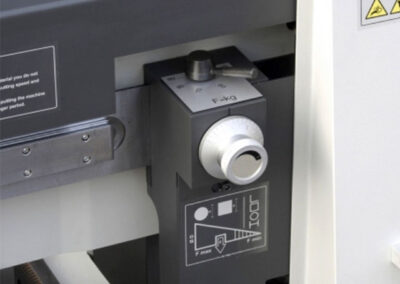

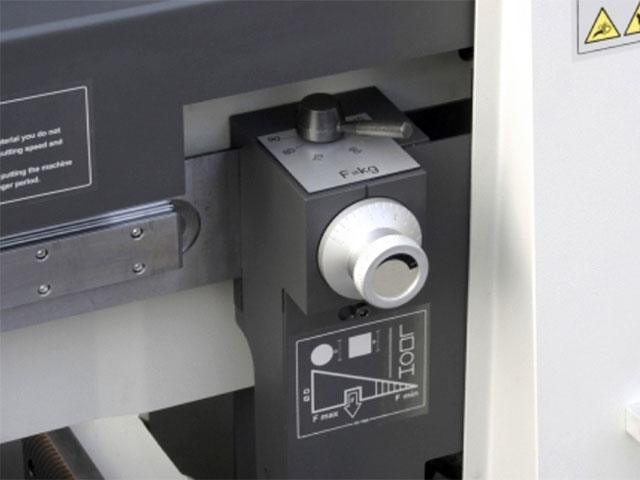

High Precision, real-time, maintenance free, down-force/down-feed HVM system

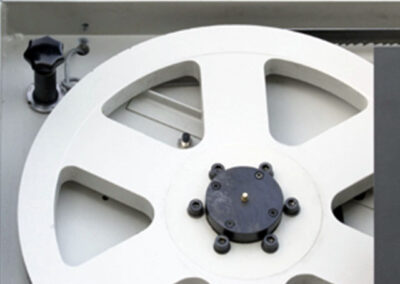

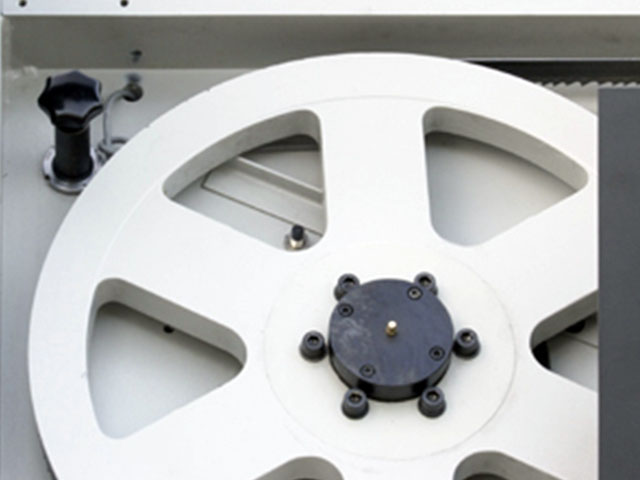

Automatic Machine OFF, in case of blade breakage or loss of pressure

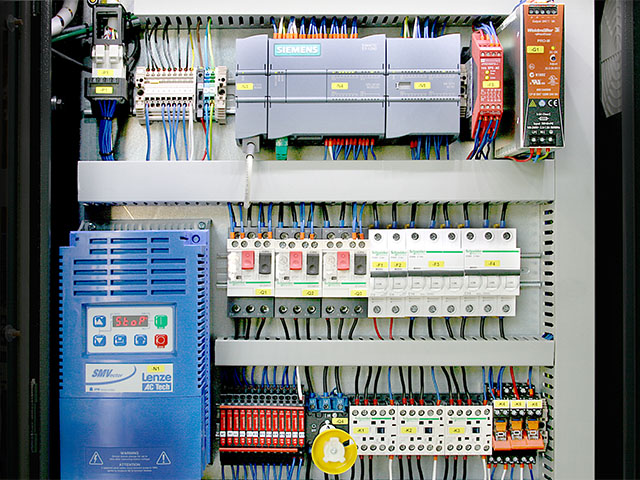

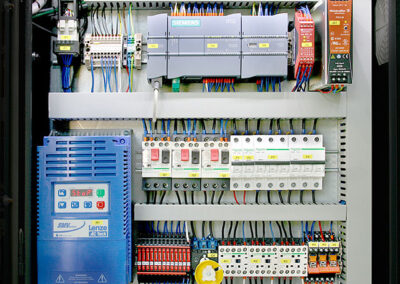

Cycle sequencing thru Siemens S7-1200 PLC

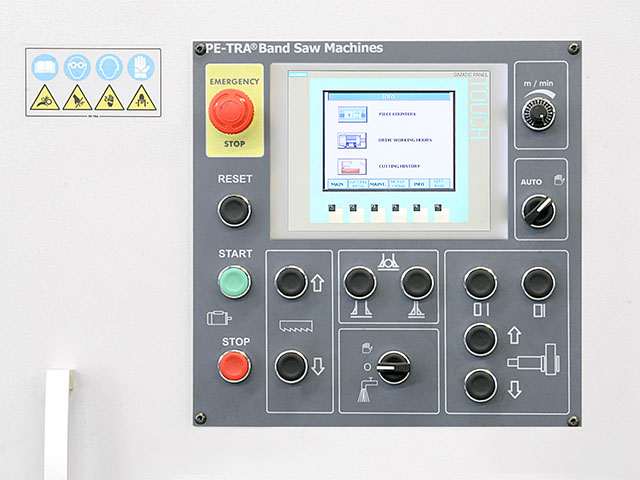

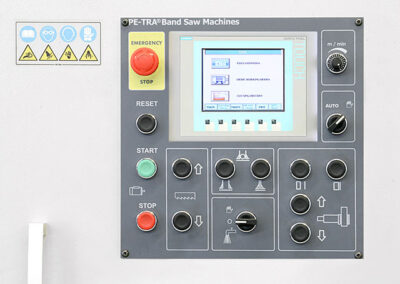

4″ Touch Screen to set band speed, to display feed, alarms, to program chip conveyor cycle, etc.

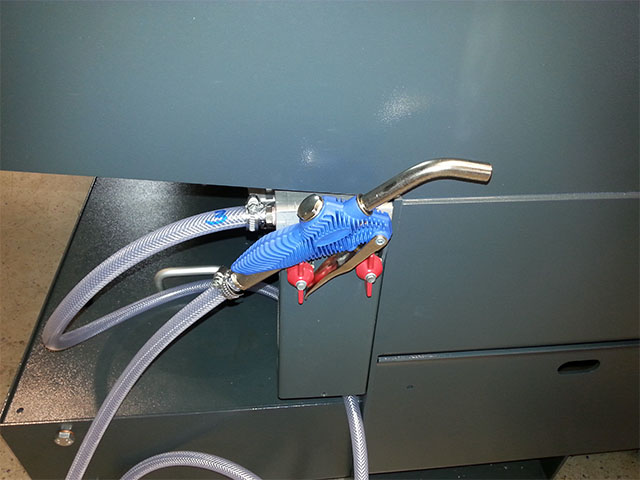

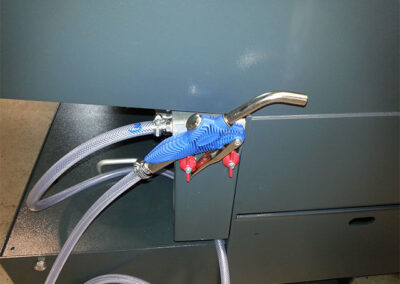

Quality cleaning gun

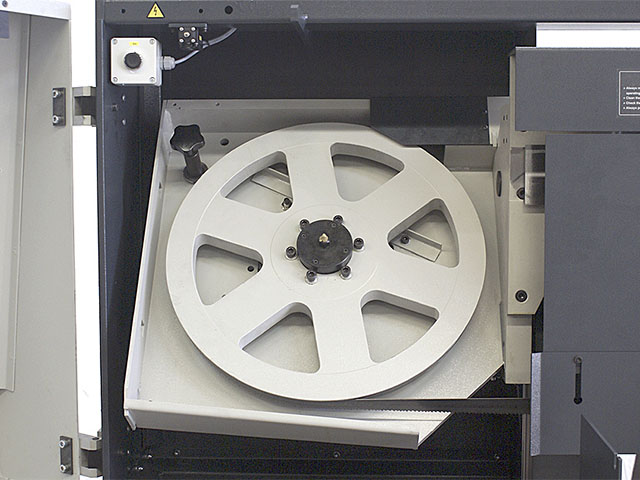

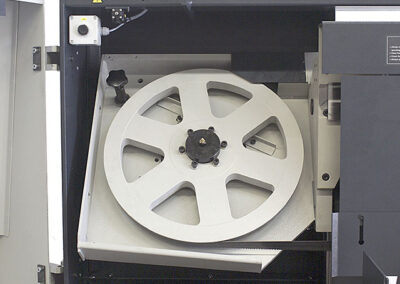

500 mm diameter, steel wheels

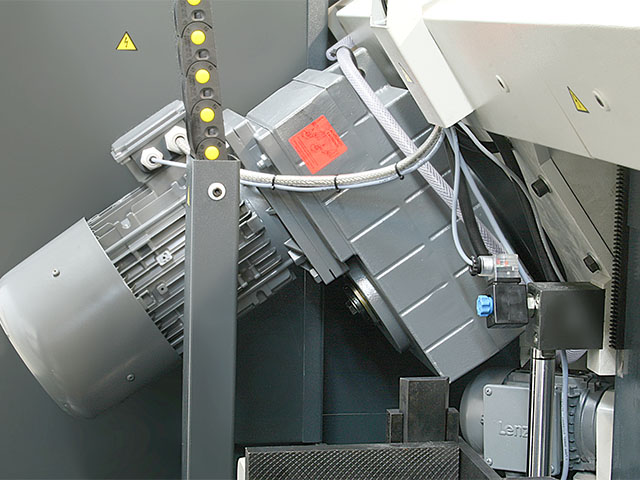

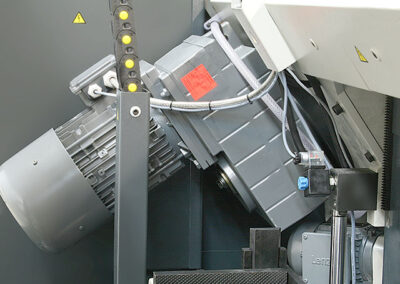

Heavy duty, highly efficient helical gear box with axial-force free design

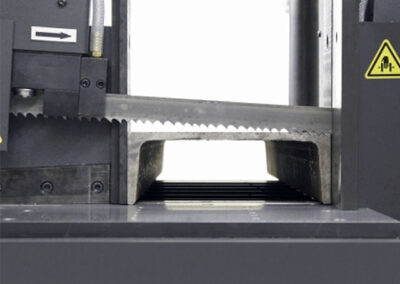

Blade attack angle (Blade approach angle) 0 or 3,5 degree adjustable through selector switch

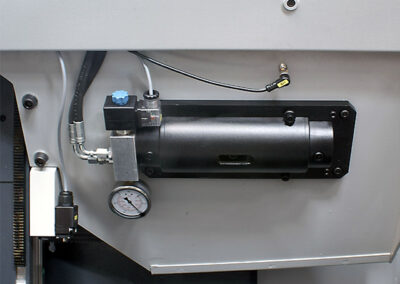

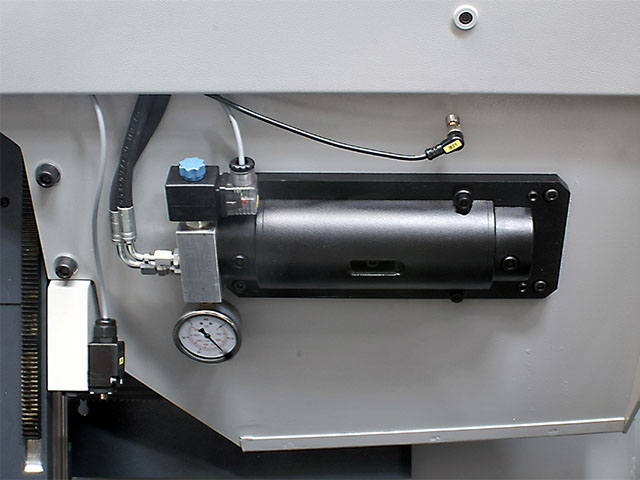

State of art automatic hydraulic blade tensioning
Your content goes here. Edit or remove this text inline or in the module Content settings. You can also style every aspect of this content in the module Design settings and even apply custom CSS to this text in the module Advanced settings.
Variable pressure in main vice for thin walled tubes
Very convenient, integrated vertical clamping for cutting bundles and precision cutting
Laser line pointer
Micro mist Coolant system
Heavy duty Roller table (2m, 3m, 4m, 6m…) with coolant collection tray
Halogen Machine lamp
